Dunli Condenser Fan Motor & Assembly - 800mm/230V-460V
$2,800.00
Pickup available at 13263 SW 124th ST
Usually ready in 1 hour

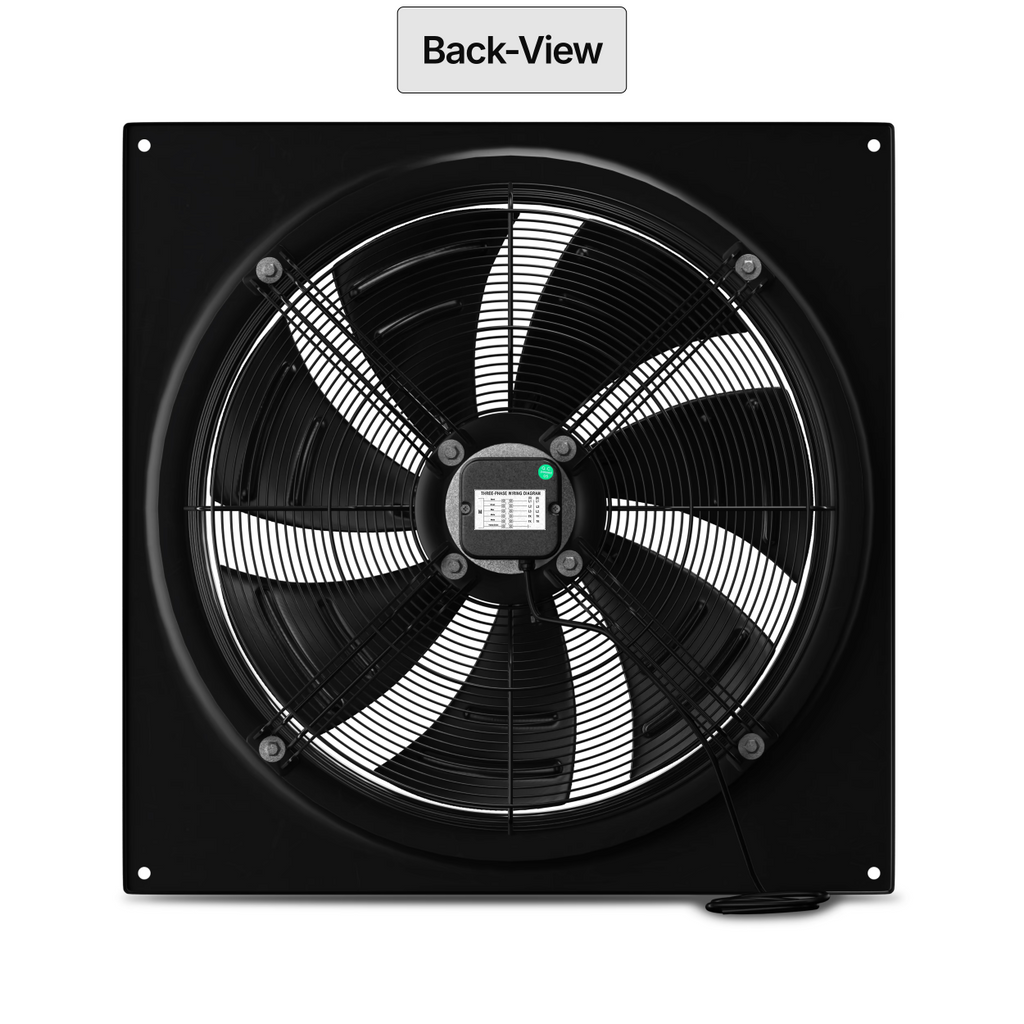

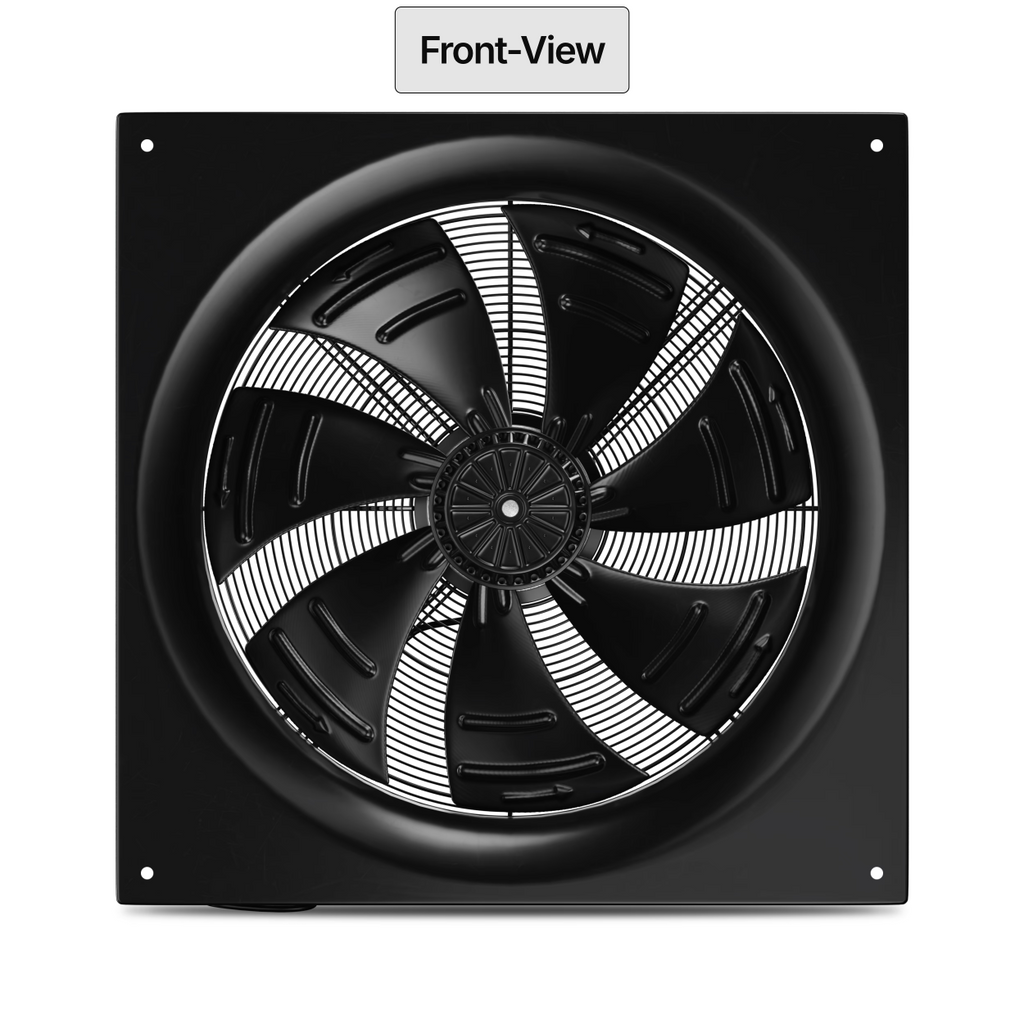

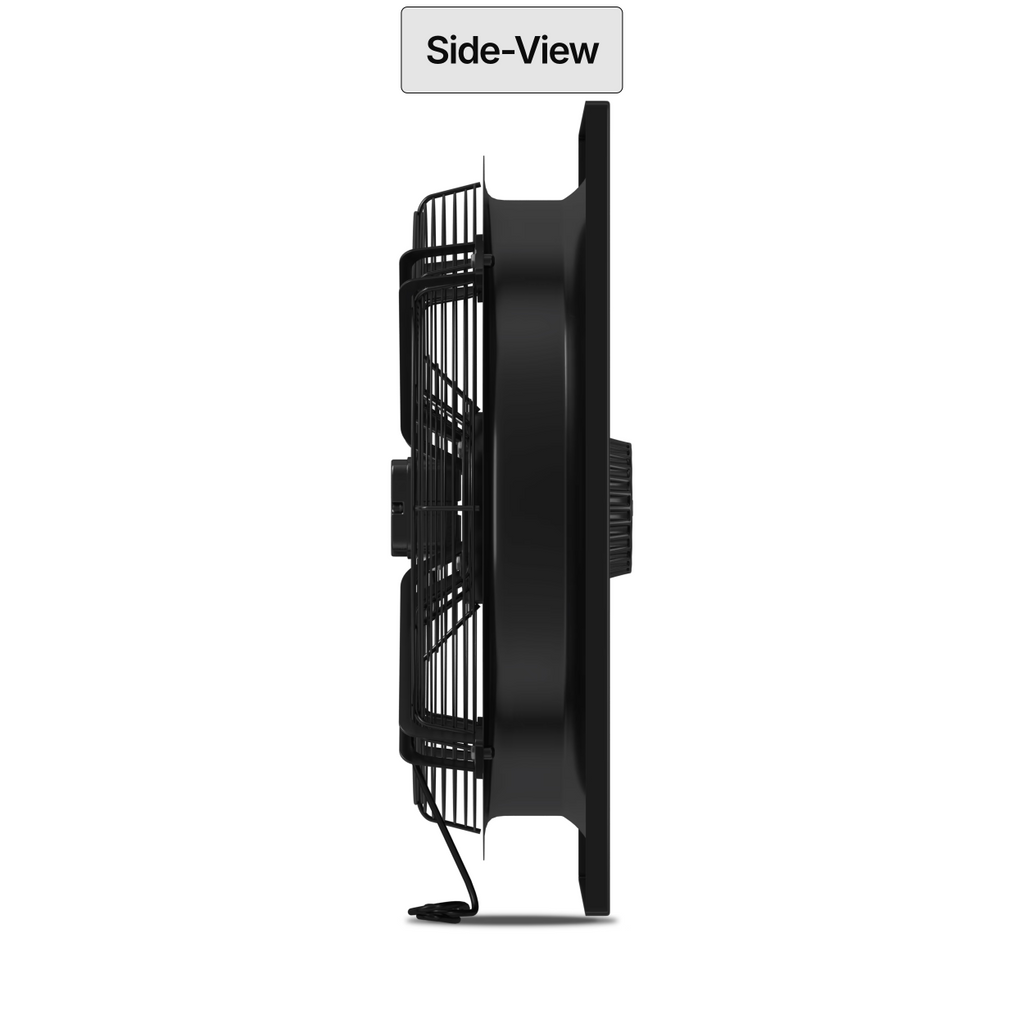

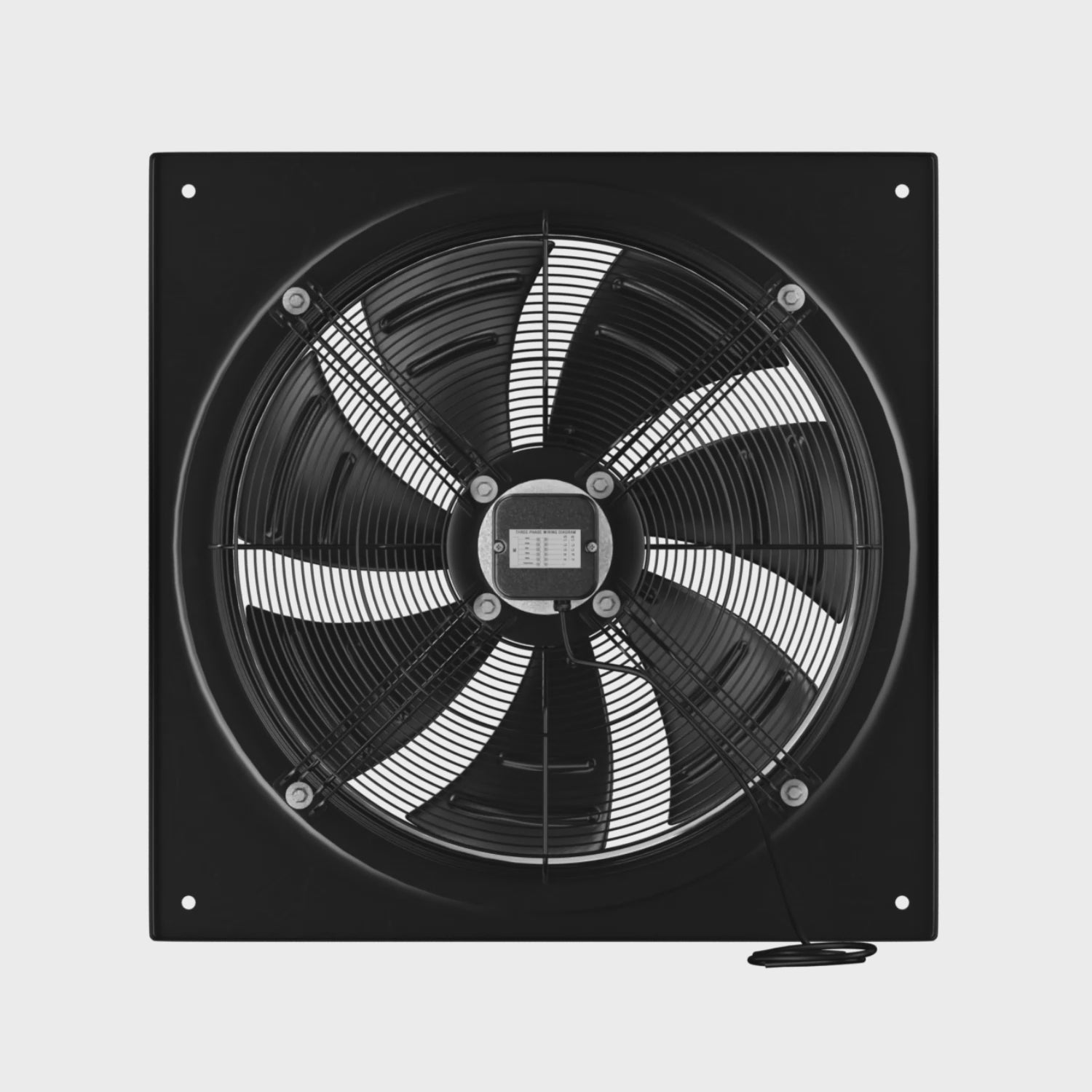

Condenser Fan Motor with Fan Assembly
| Unit | Axial fan motor with fan assembly |
| Brand | Dunli |

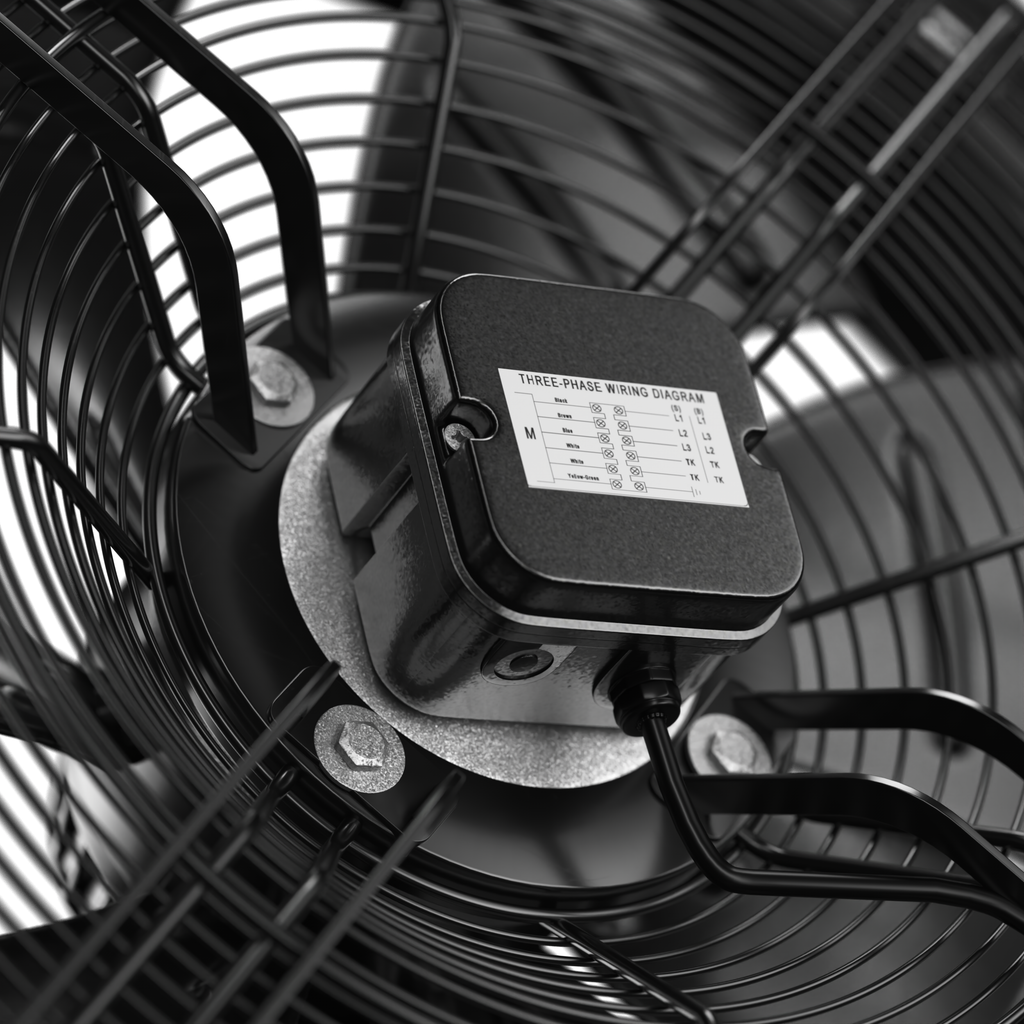

| Motor | Three-Phase motor |
| Model | YWF.A6T-800S-7FIV14 |
| Voltage | 230 V - 480 V |
| Frequency | 60 Hz |
| Input power | 1500 - 1600 W |
| Current | 4.57 - 2.58 A |
| Speed | 1060 - 1090 r/min |
| Air flow | 22600 - 23350 m³/h |
| Noise | 80.6 - 81 dBA |
| Rotation | CCW |
| Insulation class | F |
| Motor Protection | Overheated protection function, cut off temperature 150 - 160 °C |
| Protection Class | IP54 |
| Ambient temperature | -30°C + 60°C |
| Bearings | Ball bearings |
| Mounting type | Horizontal or Vertical |
| Net weight/ Gross weight | 80 / 90 lbs |
| Package size | 36 x 36 x 13 in |
- Each Condenser Fan Motor undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.

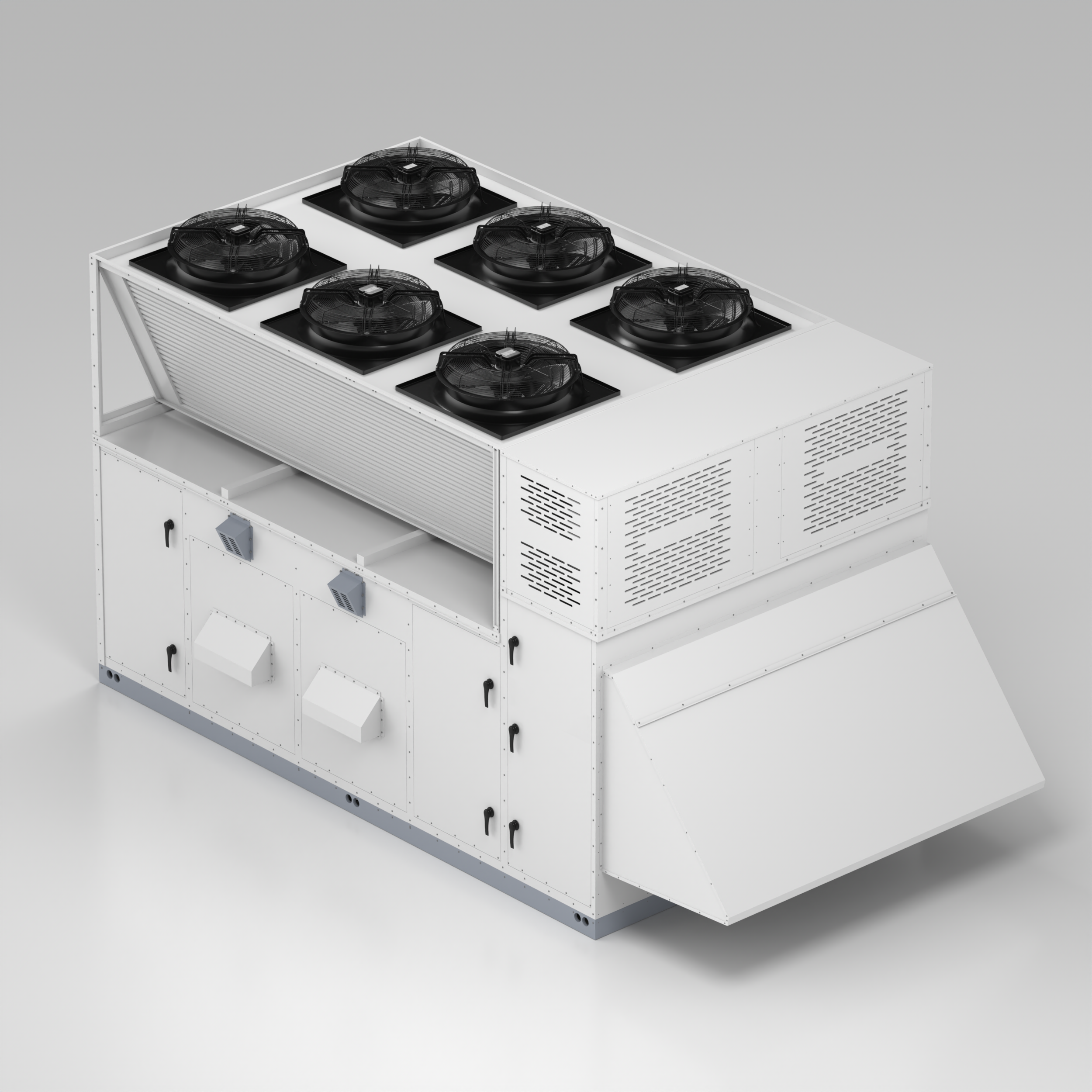

- This Condenser Fan Motor is designed specifically for Addison HVAC units. However, it may also be compatible with Daikin, AAON, and Modine units, subject to your evaluation and discretion. Please note that if you choose to use this Condenser Fan Motor with a unit other than an Addison, we cannot be held responsible for any issues or damage that may arise to the motor or your HVAC unit as a result of this decision.
