Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0750 - 630mm/230V-460V
$1,470.00
Skip to product information
Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0750 - 630mm/230V-460V
$1,470.00
Pickup available at 13263 SW 124th ST
Usually ready in 1 hour

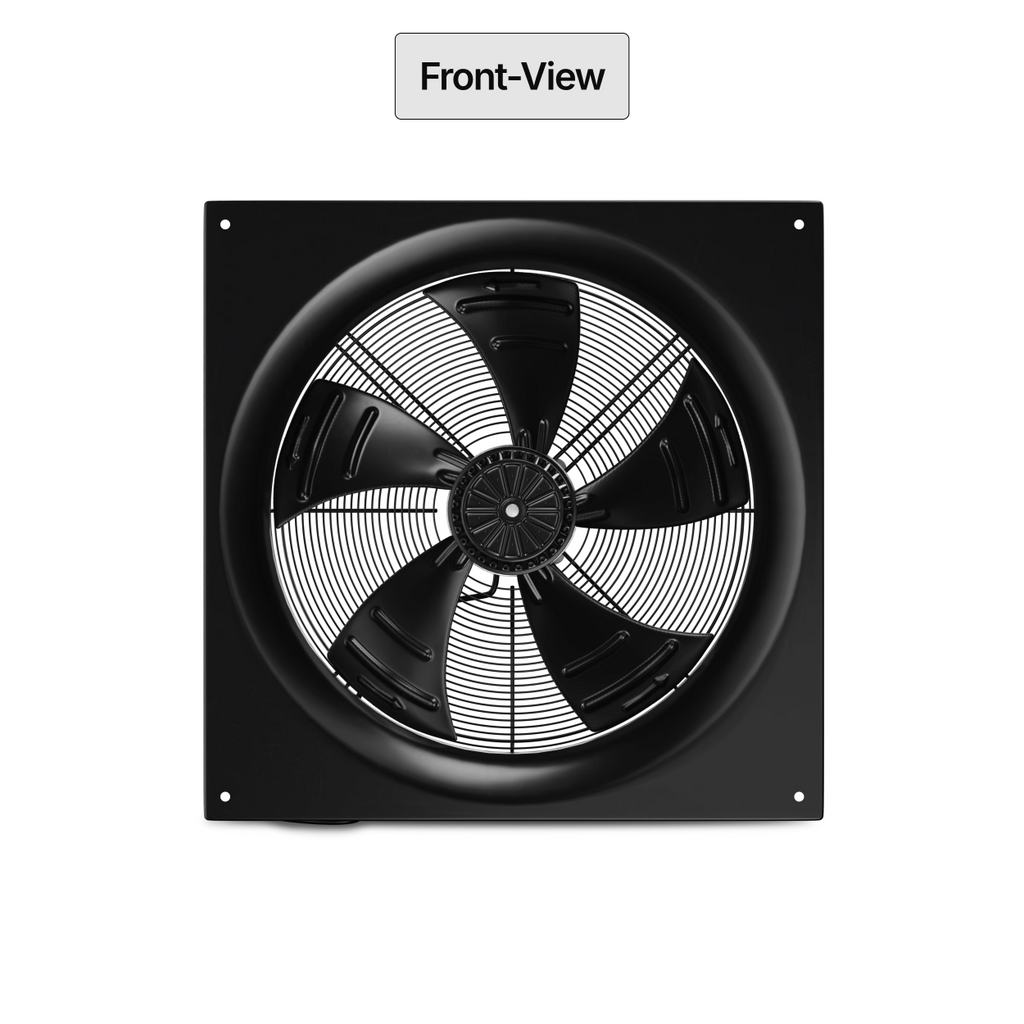

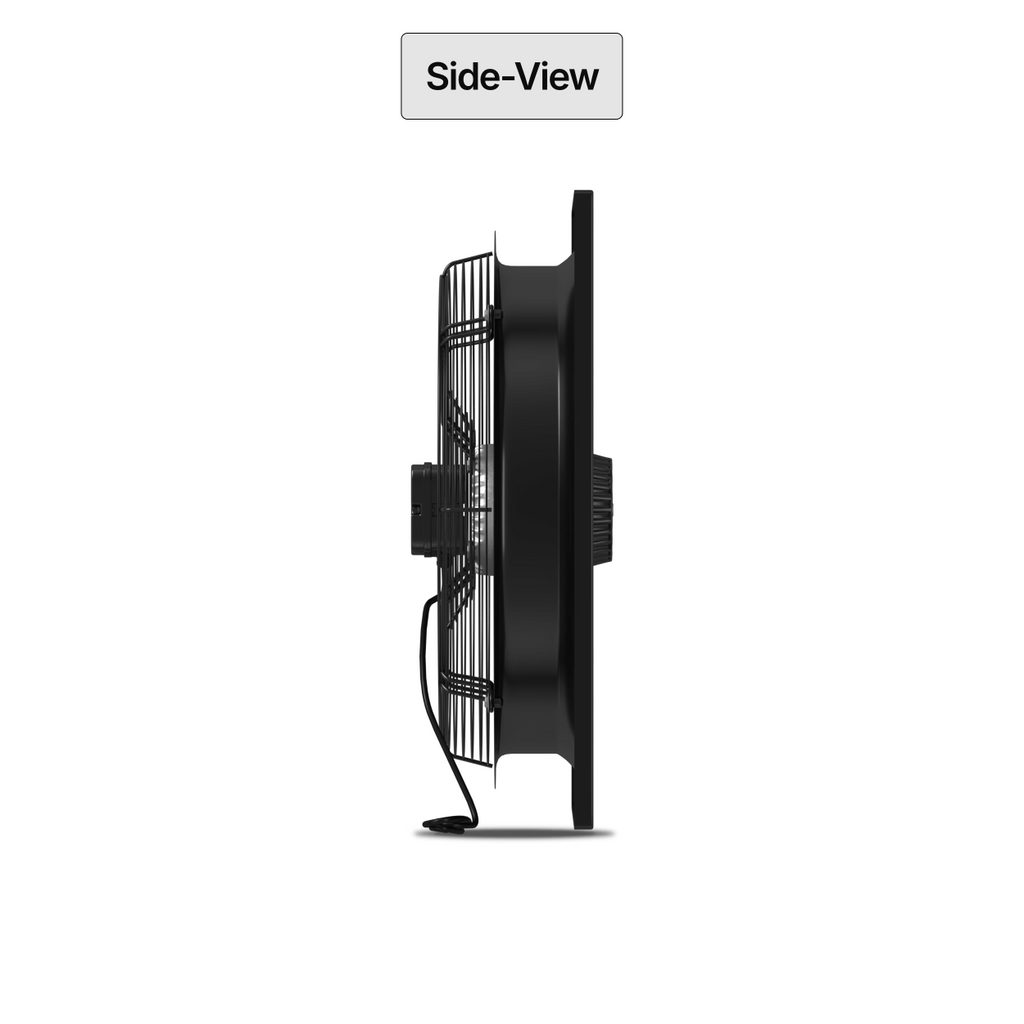

Condenser Fan Motor with Fan Assembly
Replacement Part for ADDISON # 0515P-0750
| Unit | Axial fan motor with fan assembly |
| Brand | Dunli |
| Motor | Three-Phase motor |
| Model | YWF.A4T-630S-5FIIIV01 |
| Voltage | 230V-460V |
| Frequency | 60 Hz |
| Input power | 800 W |
| Current | 2.6 A |
| Speed | 1580 r/min |
| Air flow | 11000 m³/h |
| Noise | 75 dBA |
| Rotation | CW, looking into the end-shield |
| Insulation class | F |
| Motor Protection | Overheated protection function, cut off temperature 150 - 160 °C |
| Protection Class | IP54 |
| Ambient temperature | -30°C + 60°C |
| Bearings | Ball bearings |
| Mounting type | Horizontal or Vertical |
| Net weight/ Gross weight | 55.11 / 61.72 lbs |
| Package size | 32.28 x 32.28 x 10.43 in |
- Each Condenser Fan Motor undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
- This Condenser Fan Motor is designed specifically for Addison HVAC units. However, it may also be compatible with Daikin, AAON, Carrier and Modine units, subject to your evaluation and discretion.
