Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V
$1,990.00
Skip to product information
Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V
$1,990.00
Pickup available at 13263 SW 124th ST
Usually ready in 1 hour

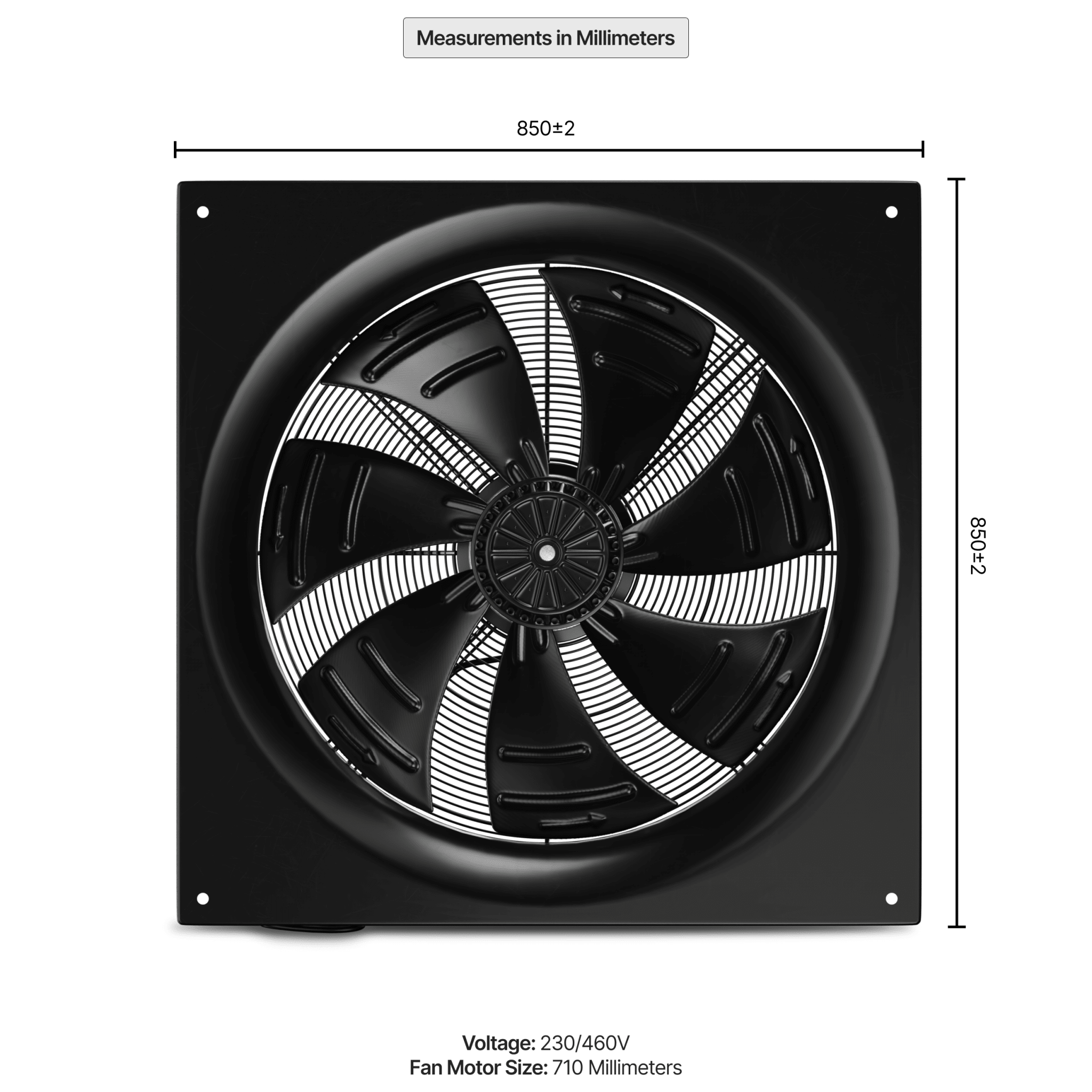

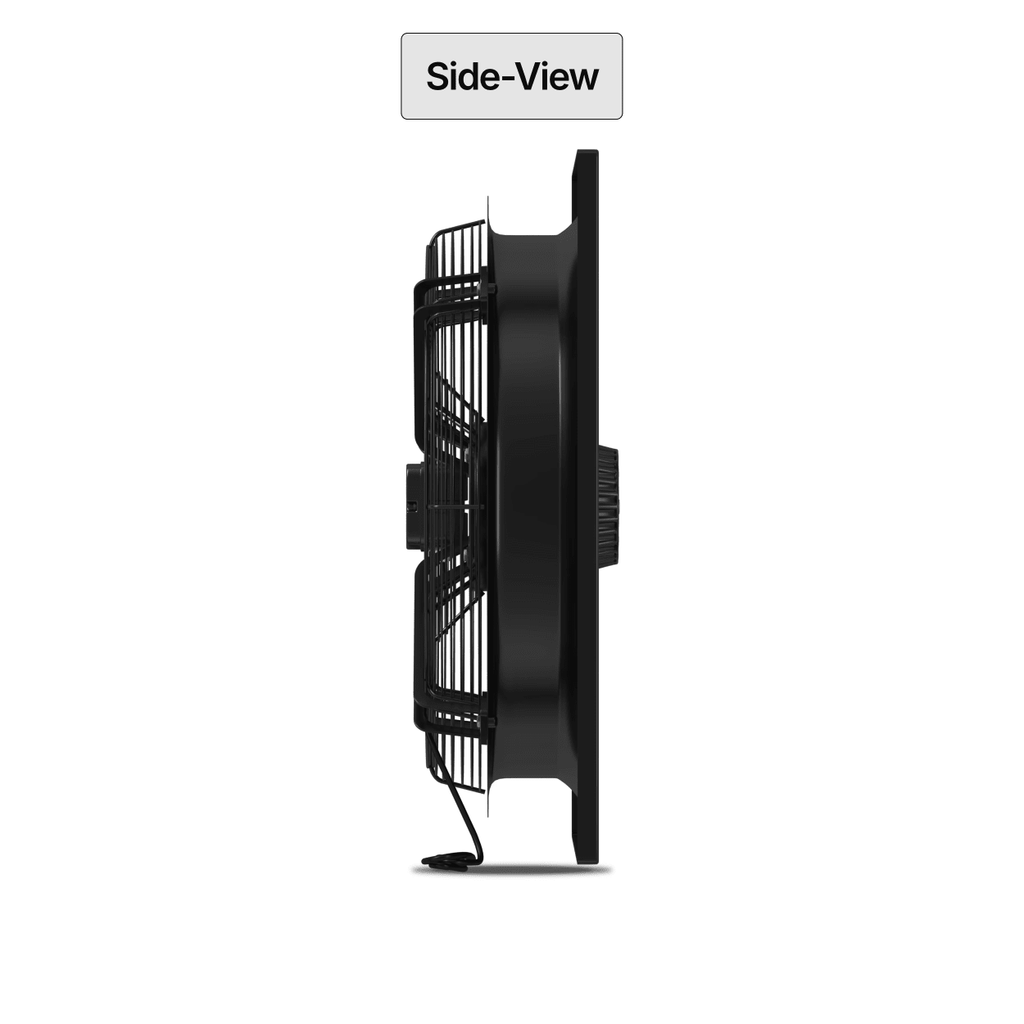

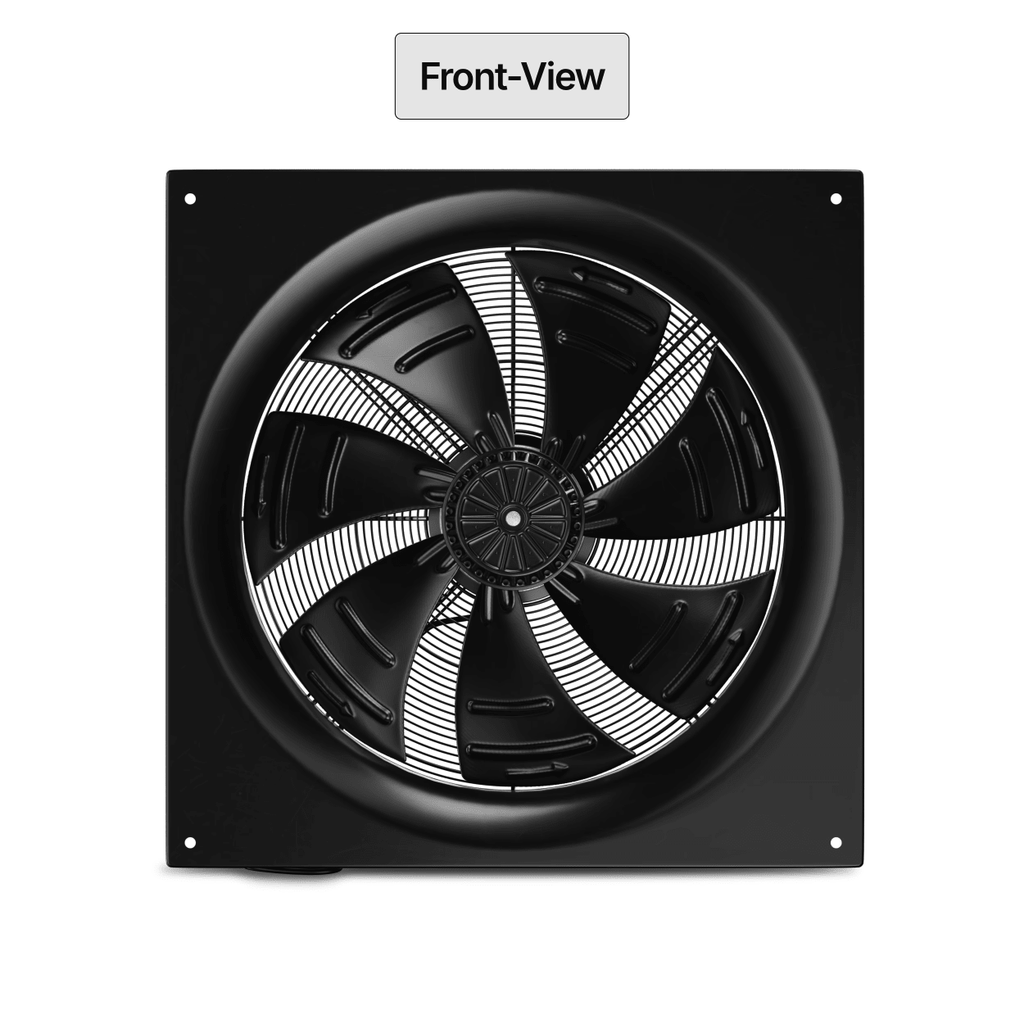

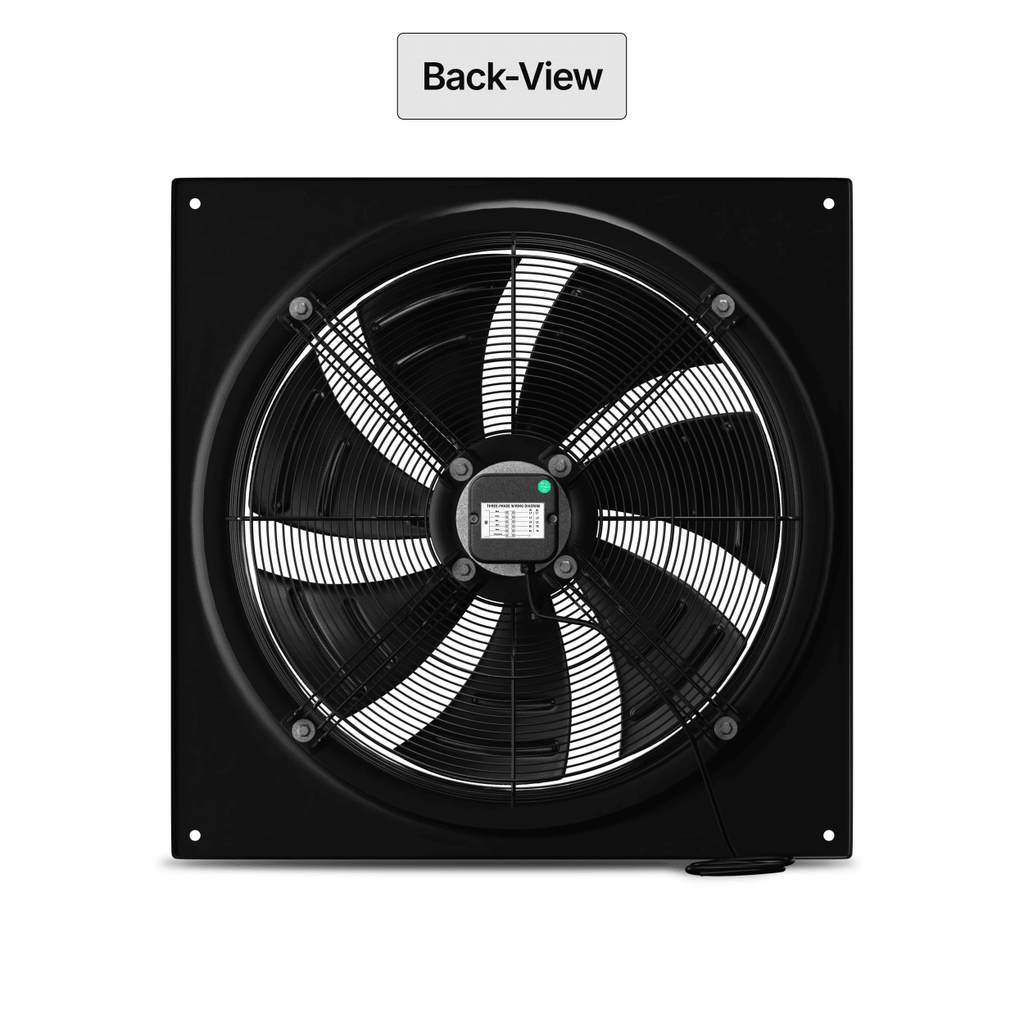

Condenser Fan Motor with Fan Assembly
Replacement part for ADDISON # 0515P-0784
|
Unit |
Axial fan motor with fan assembly |
| Brand | Dunli |

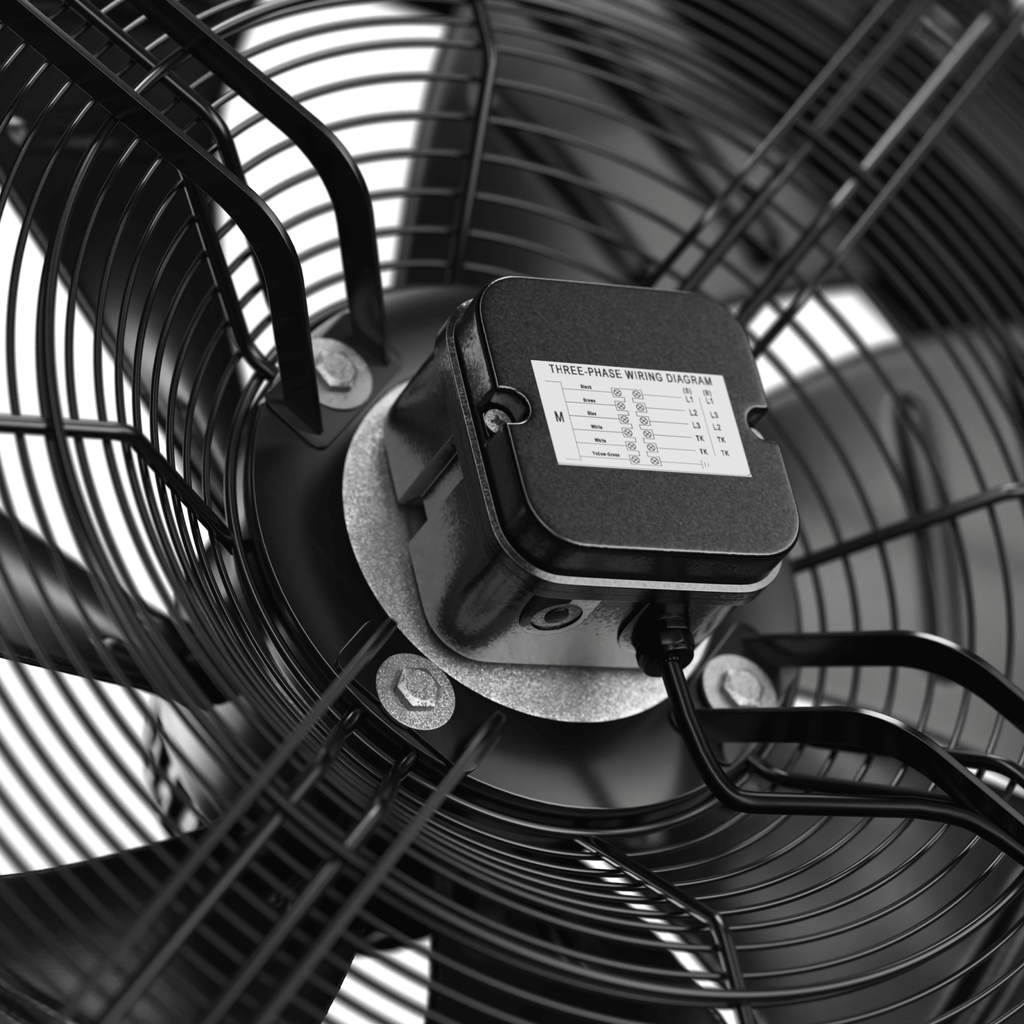

| Motor | Three-Phase motor |
| Model | YWF.A6T-710S-7FIIIV04 |
| Voltage | 230 V / 460 V. Double voltage |
| Frequency | 60 Hz |
| Input power | 1250 W |
| Current | 3.4 A |
| Speed | 1050 r/min |
| Air flow | 14700 m³/h |
| Noise | 75 dBA |
| Rotation | CCW |
| Insulation class | F |
| Motor Protection | Overheated protection function, cut off temperature 150 - 160 °C |
| Protection Class | IP54 |
| Ambient temperature | -30°C + 60°C |
| Bearings | Ball bearings |
| Mounting type | Horizontal or Vertical |
| Net weight/ Gross weight | 82 / 90 lbs |
| Package size | 34 x 34 x 12 in |
- Each Condenser Fan Motor undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.

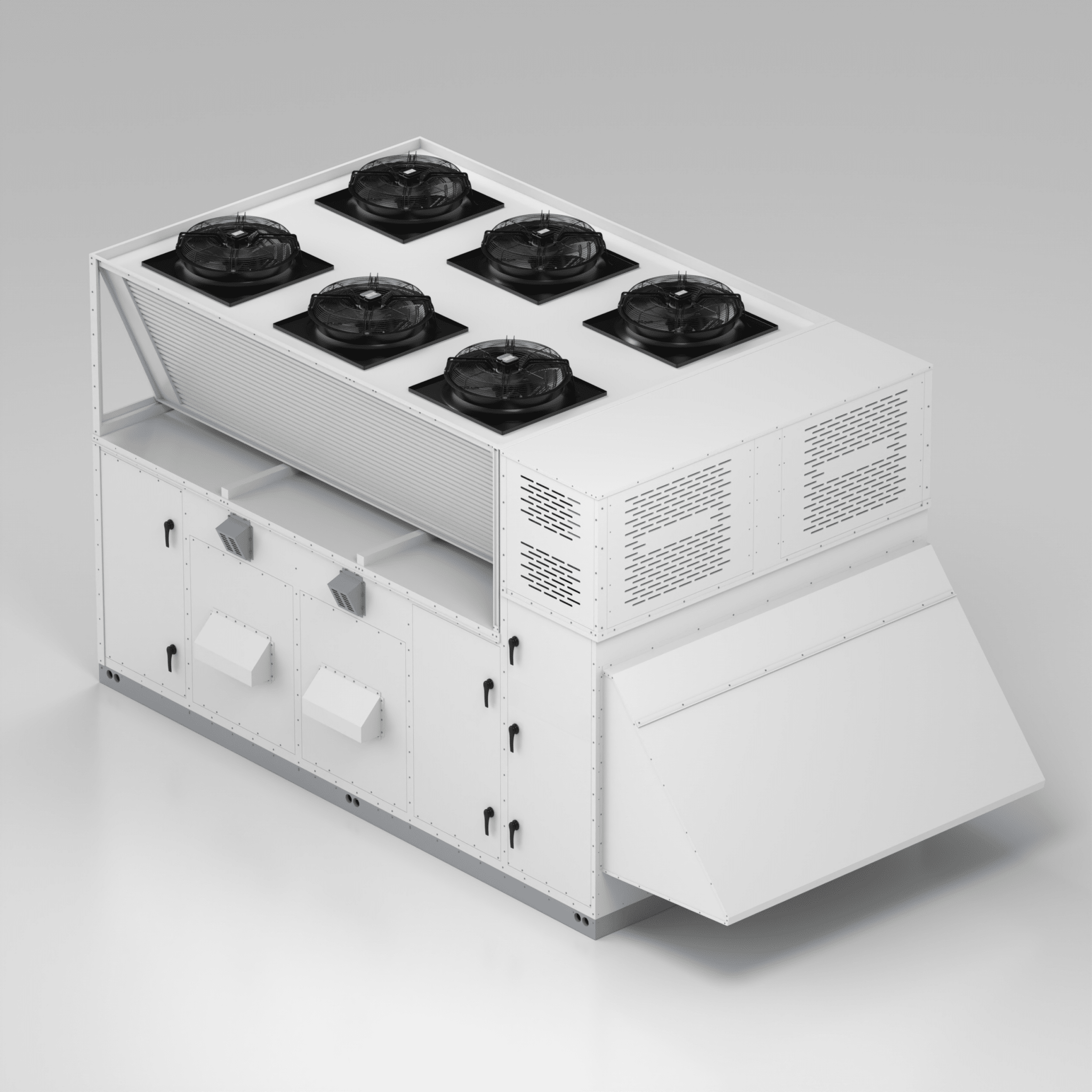

- This Condenser Fan Motor is designed specifically for Addison HVAC units. However, it may also be compatible with Daikin, AAON, Carrier and Modine units, subject to your evaluation and discretion.
