Tasseron Duct Euro Humidity/Temperature Sensor (THHDEA5C) Addison SAT/RH Aftermarket for # 0843P-0586

Duct sensor for relative humidity (RH) and temperature (T)

Addison Supply Air Temperature and Relative Humidity Sensor

FEATURES

• Humidity or RH+T analog options available (0-10V or 4-20mA)
• Durable NEMA 4X/IP65 injection-molded watertight enclosure
• Quick Connect wire terminals for secure and tool-free wiring
• Dual element filters to protect from contamination
• 2% / 3% / 5% RH accuracies available
• Analog temperature output 0-10V or 4-20mA (multiple ranges)
• Additional passive NTC/RTD temperature elements available
• Coated circuit boards for moisture resistance
• AISI 316 SS probe
• CE & RoHS compliant
• Made in the USA

GENERAL INFORMATION

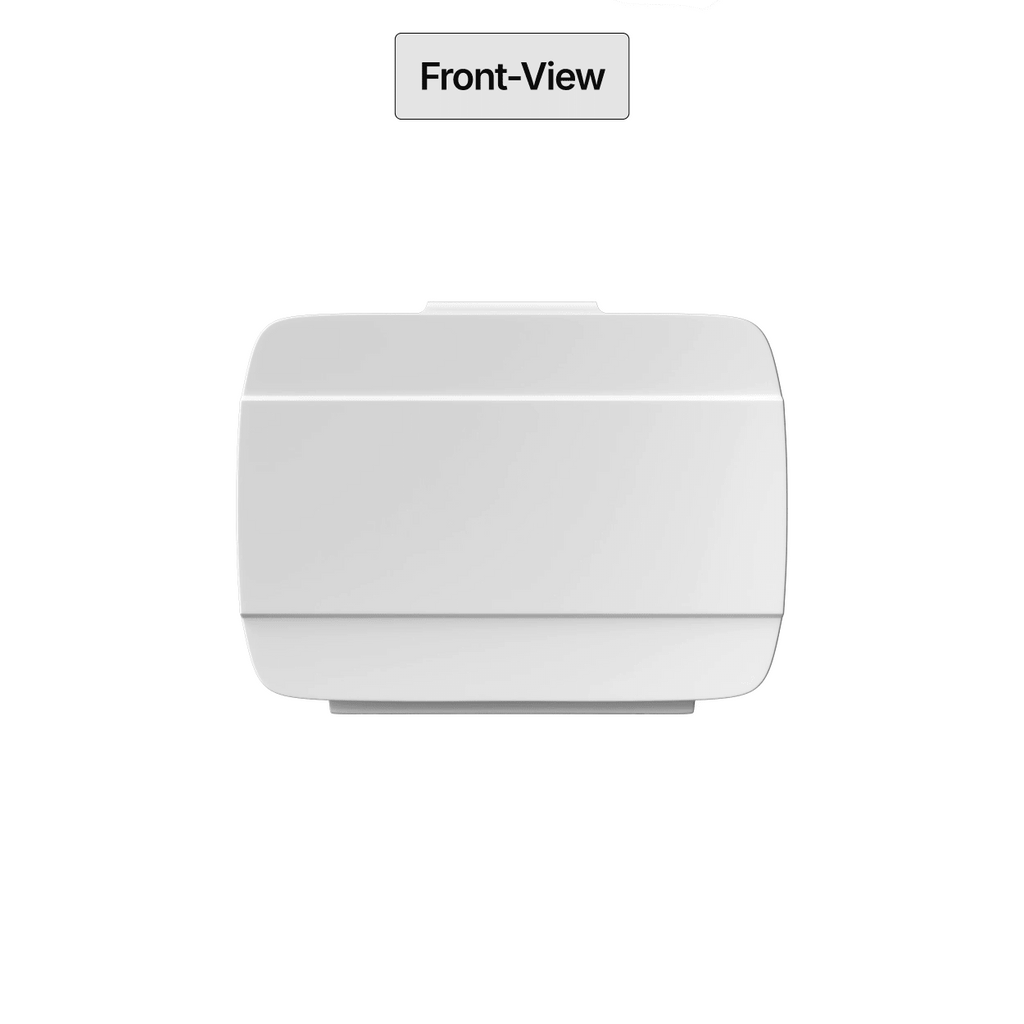

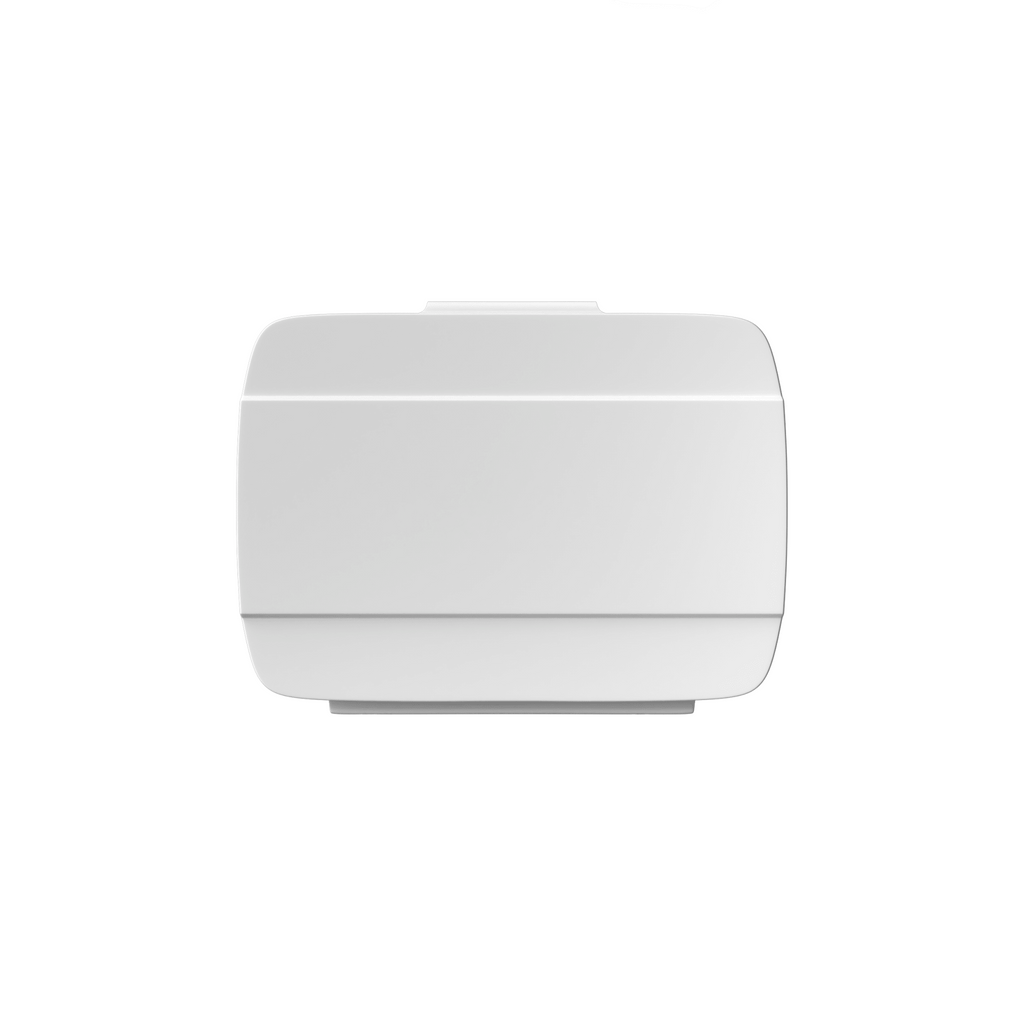

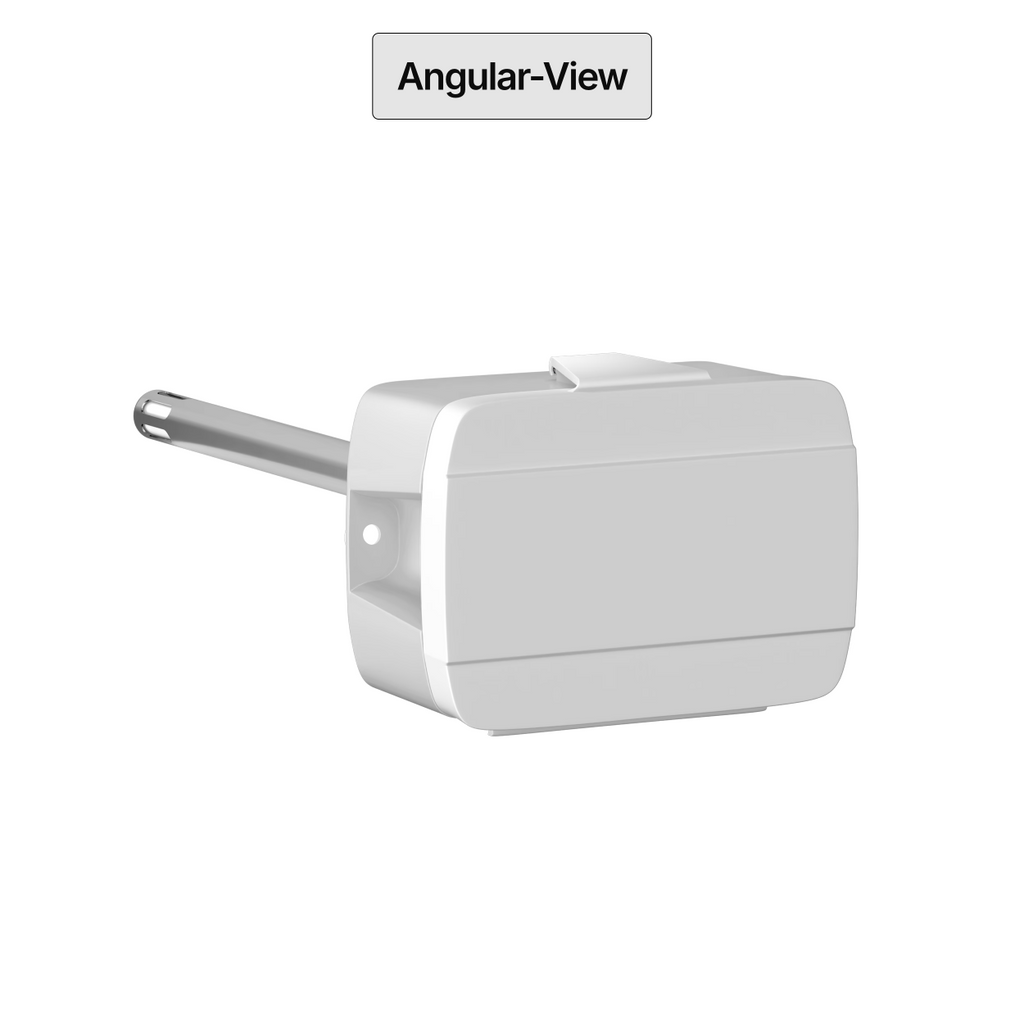

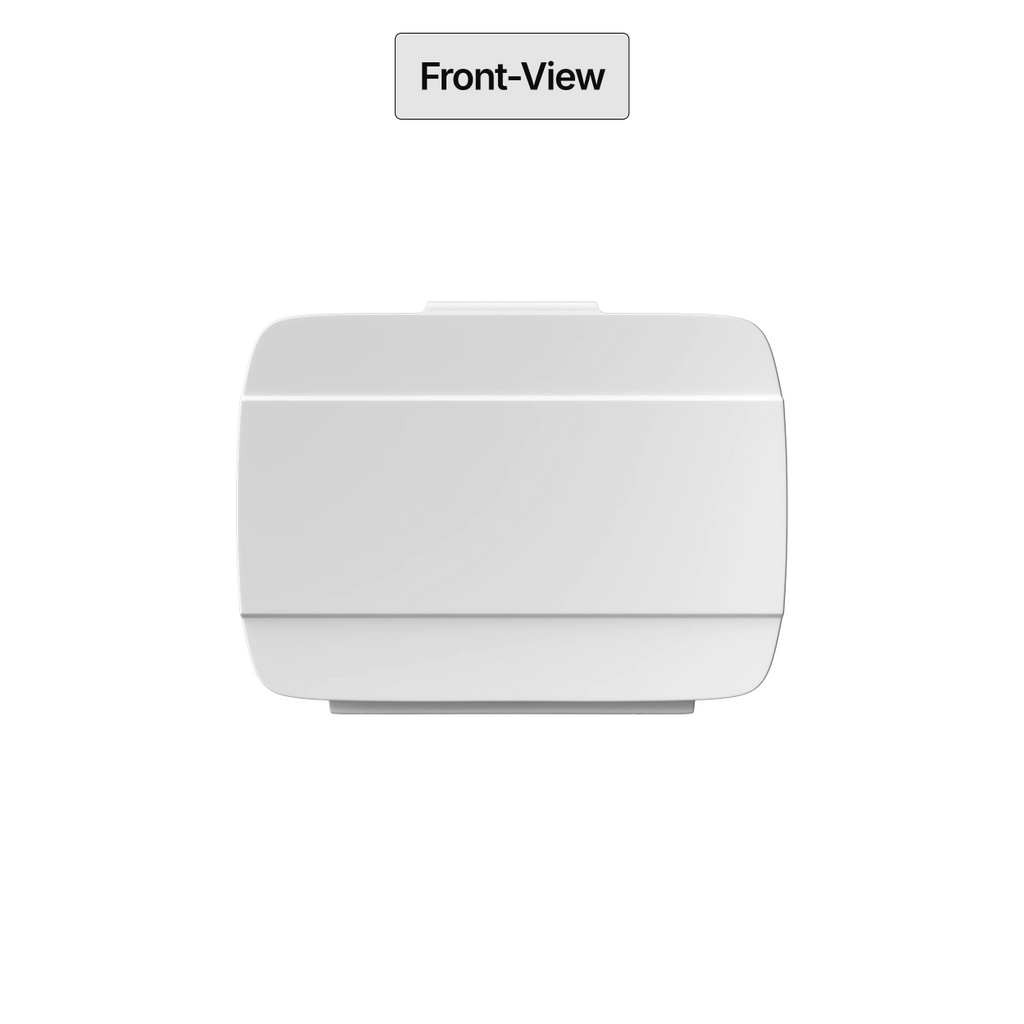

High quality duct mounted Relative Humidity (RH) and Temperature (T) sensor in the NEMA 4X Euro enclosure, equipped with hinged cover and tool-free Quick Connect wire terminals.

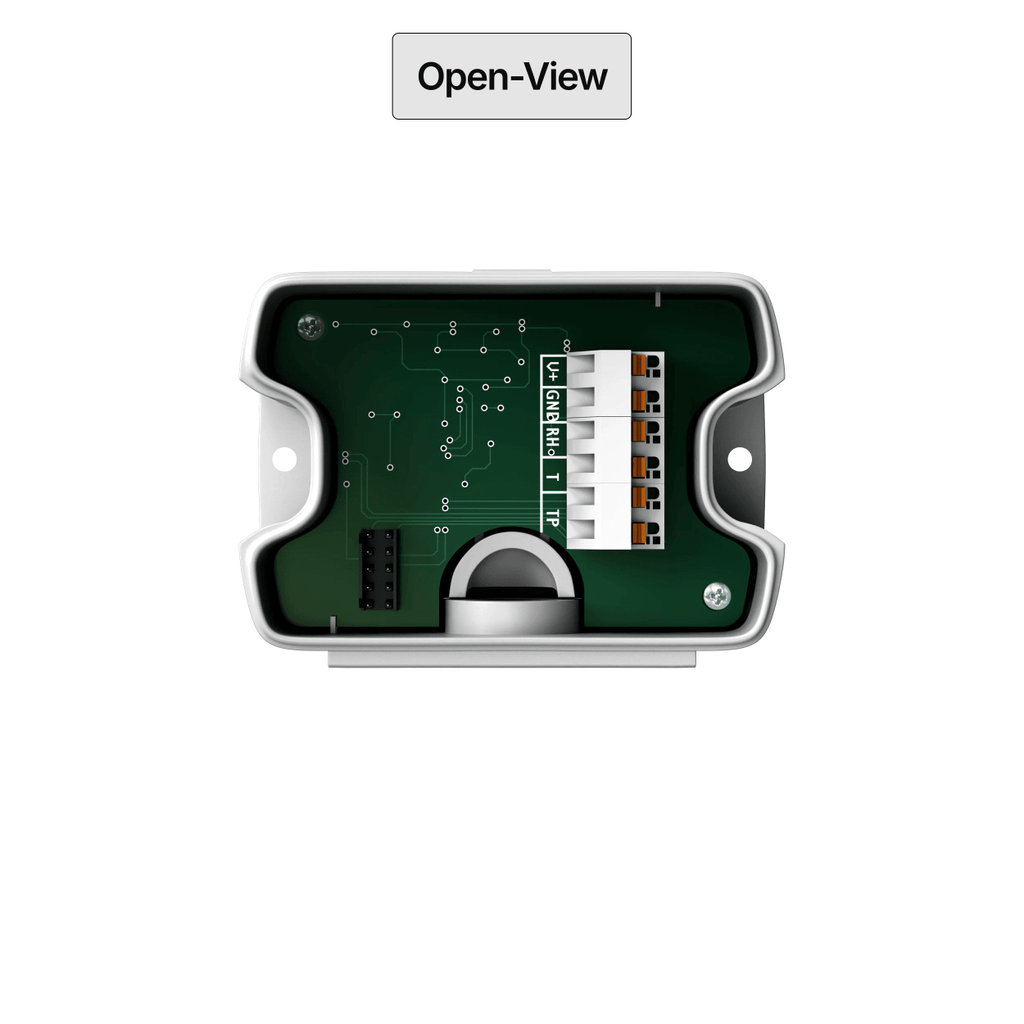

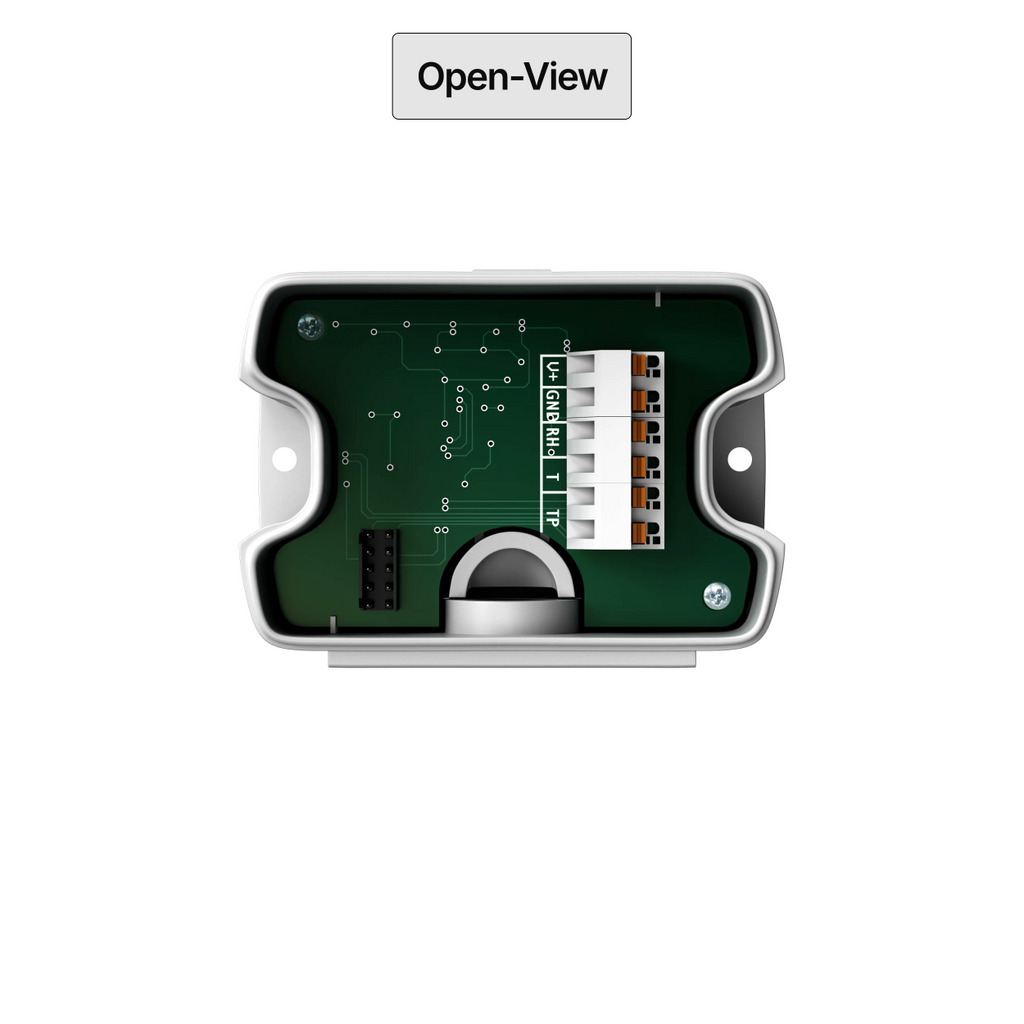

Circuit boards are coated to resist moisture and offer fixed analog output for RH, either 0 -10V or 4-20mA. Duct Euro humidity sensors are also equipped an active analog temperature signal, with the option of an additional passive NTC or RTD element.

Tasseron humidity sensors offer high accuracy and long term stability with minimal annual drift. Dual filters on the elements resist contamination and ensure reliability over time.

SPECIFICATIONS

General:

Supply Voltage:

24 VAC ±20%; 15-35 VDC Max

Power Consumption:

3VA for 24VAC, 3W for 24VDC (peak);

Operating Range:

-40…+70°C / -40...+158°F ; 10...90%RH (non-condensing) Enclosure Rating:         IP65; NEMA 4X

Enclosure Material:

PC/ABS UL 94 V-0, UV resistant injection-molded

Cover:

Removable Quick snap/hinged cover

Probe:

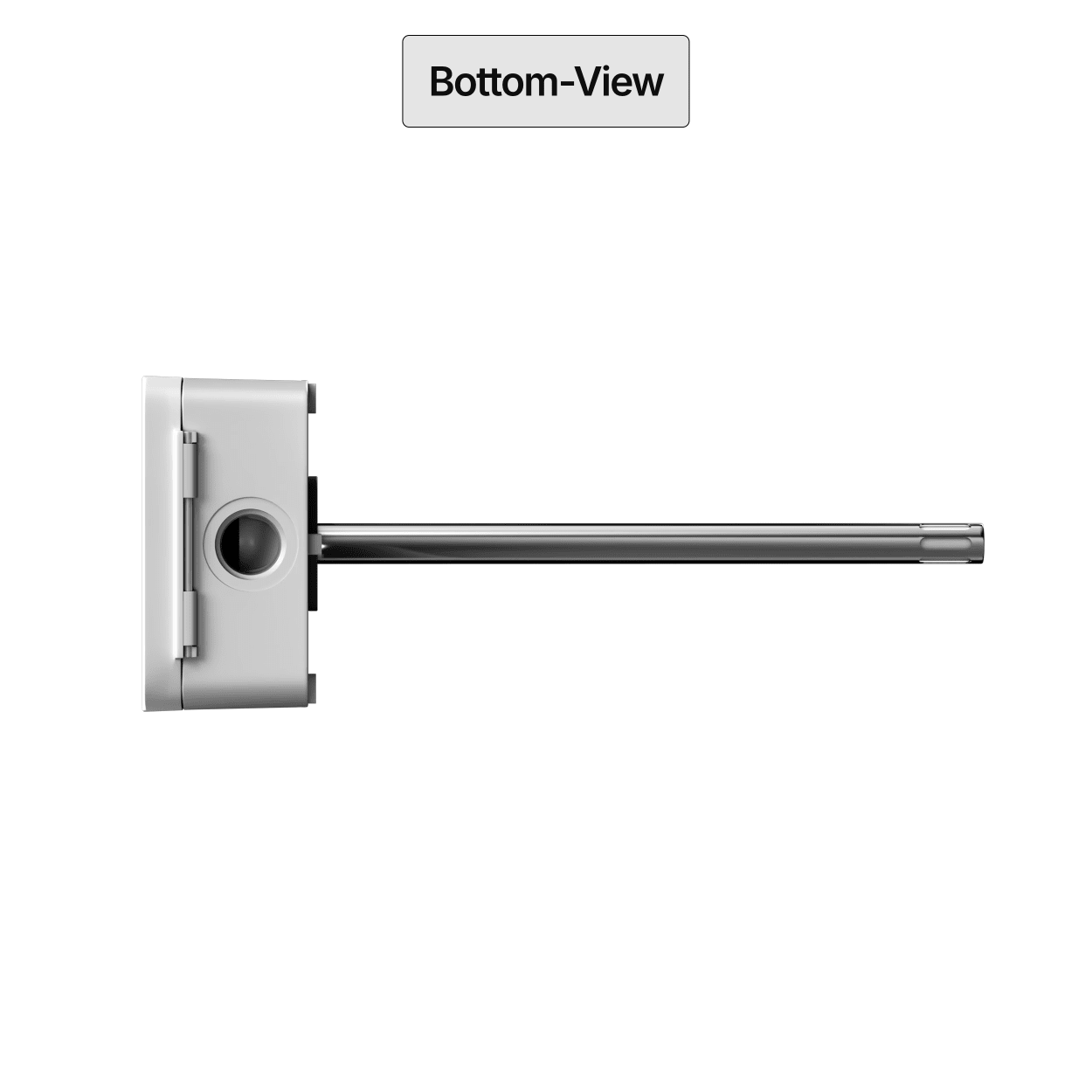

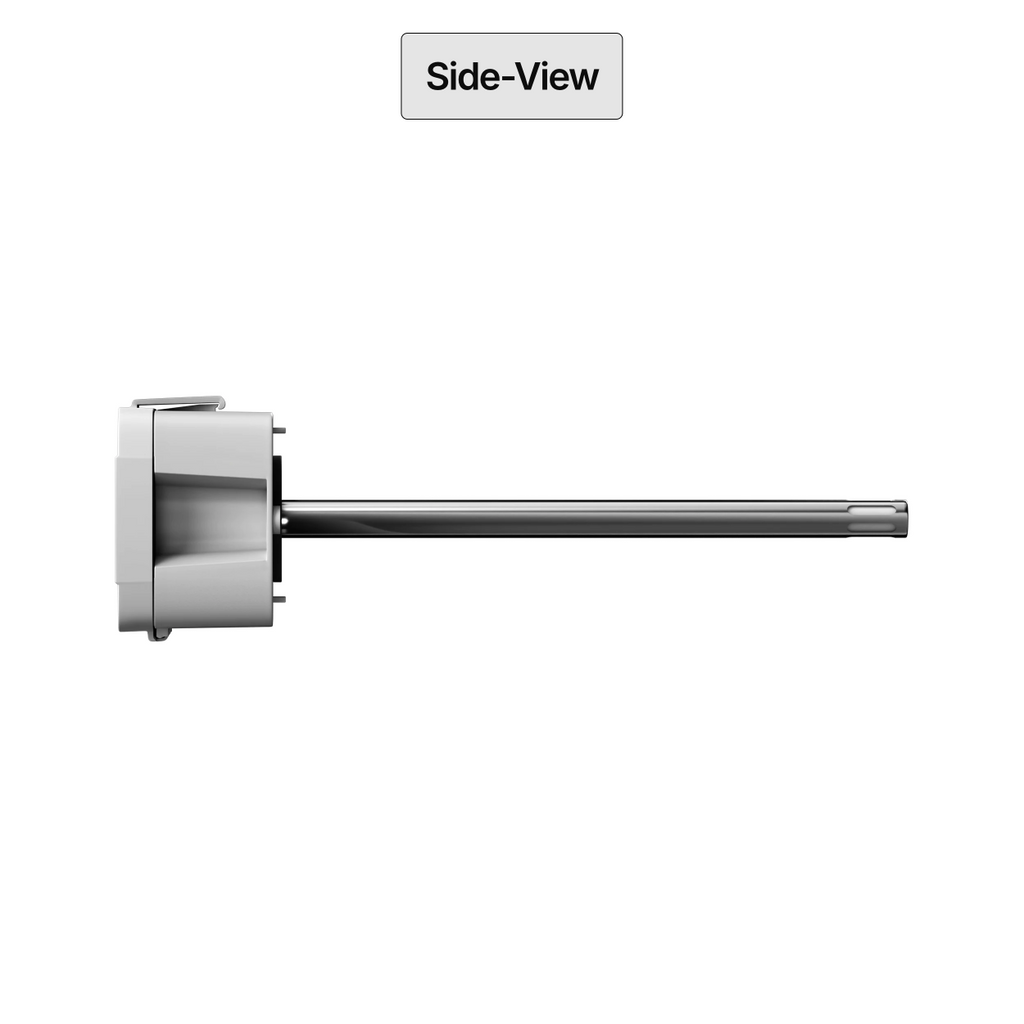

AISI 316L; 8in. Length (205mm), 12mm diameter

Mounting:

Direct or available adjustable mounting system

Connection:

AWG 22-16 / 0.35—1.5mm² spring-loaded, Quick Connect wire terminals Output

Signal:

Analog 0-10V or 4-20mA

*Other outputs available on request
