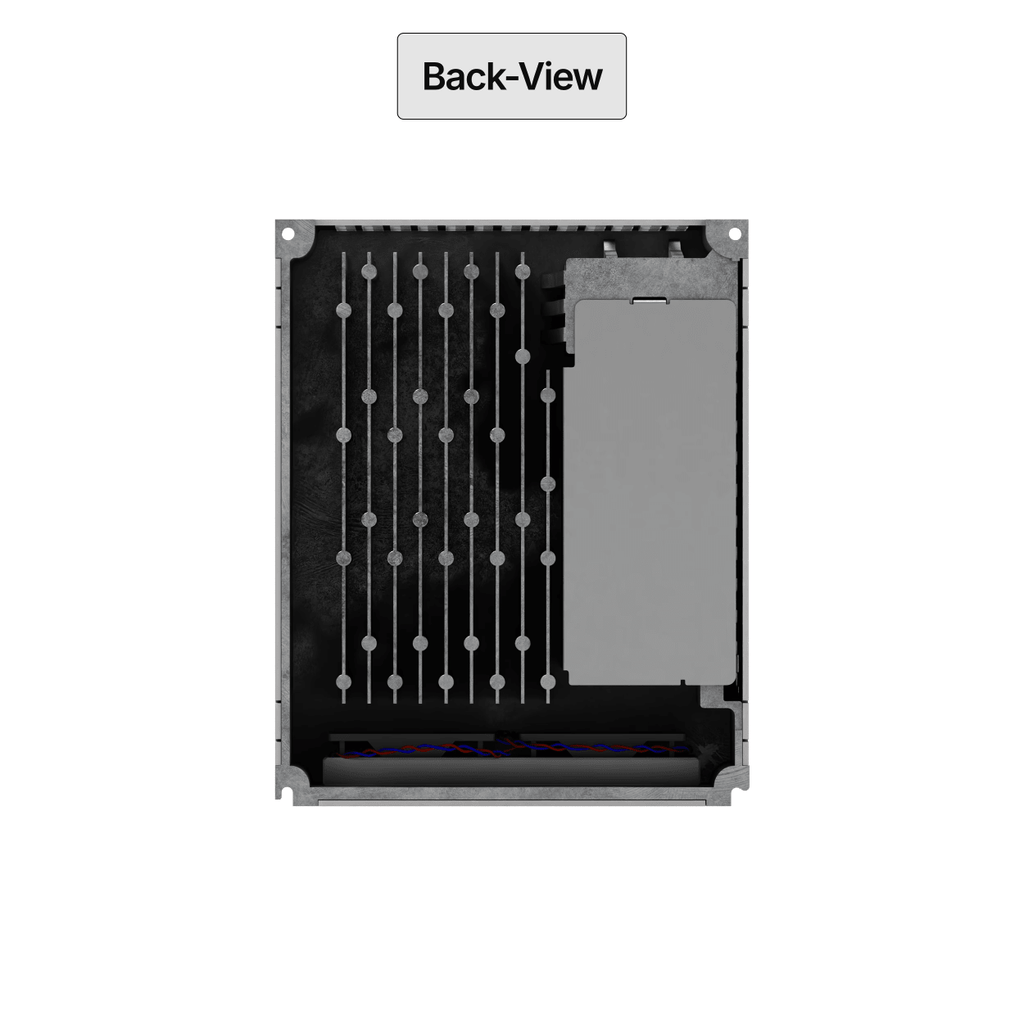

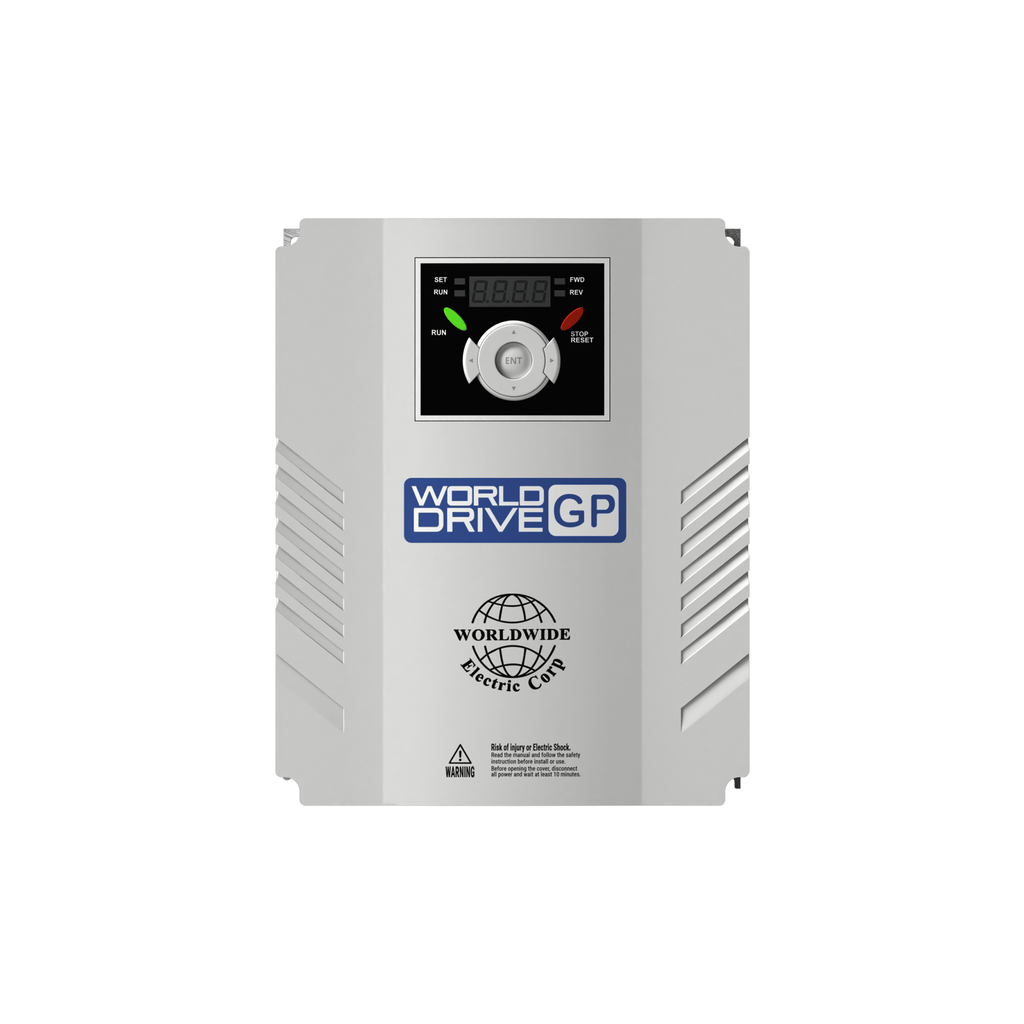

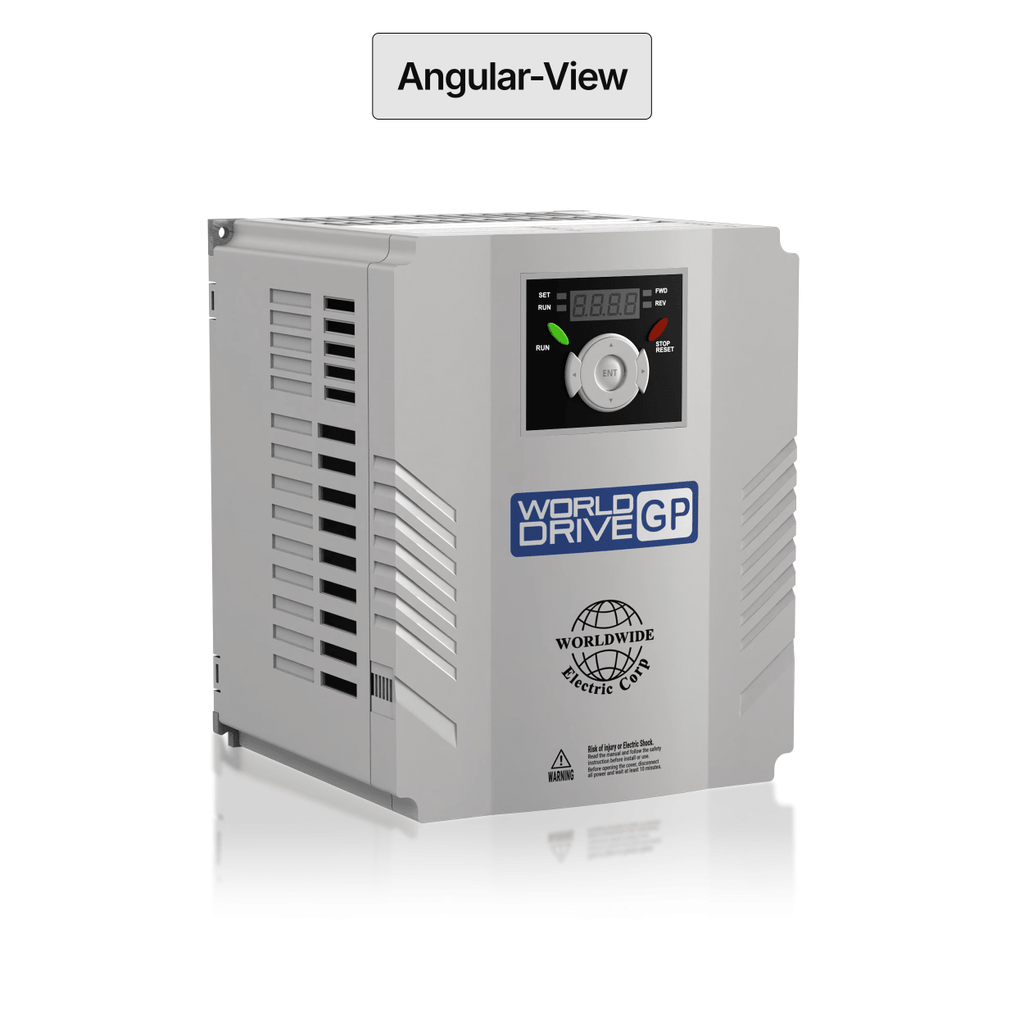

Worldwide Electric WDGP004-1 Variable Frequency Drive Chassis

The WDGP004-1 is part of the WorldDrive GP (General Purpose) series, a chassis-mount variable frequency drive designed for flexible installation in custom enclosures. This unique single-phase input to three-phase output VFD provides V/f slip compensation control and sensorless vector control, allowing you to run three-phase motors from single-phase power sources.

Technical Specifications

Input Voltage: 240V AC (200-230V), Single Phase (-15%, +10%)
Output: Three Phase
Rated Power: 0.5 HP (Constant Torque)
Output Current: 3A (Constant Torque)
Protection Degree: NEMA 1 / IP20 (Chassis mount - requires enclosure)
Control Method: V/f Slip Compensation Control, Sensorless Vector Control
Output Frequency: 0-400Hz (Sensorless: 0-300Hz)
Carrier Frequency: 1-15kHz
Dimensions (H x W x D): 5" x 2.8" x 5.1"

Key Features

150% overload for 60 seconds
Single-phase input to three-phase output conversion
V/f Slip Compensation control and Sensorless Vector Control
Built-in Modbus-RTU communication
Conformal coated printed circuit boards
UL, cUL, Listed and CE certified
Chassis mount design for custom enclosure integration
Compact footprint ideal for space-constrained applications

Applications

Perfect for locations with only single-phase power available but requiring three-phase motor operation. Ideal for small workshops, residential applications, remote installations, and retrofit projects. Designed for OEMs, panel builders, and system integrators who need flexible VFD installation options for motors up to 2 HP.
