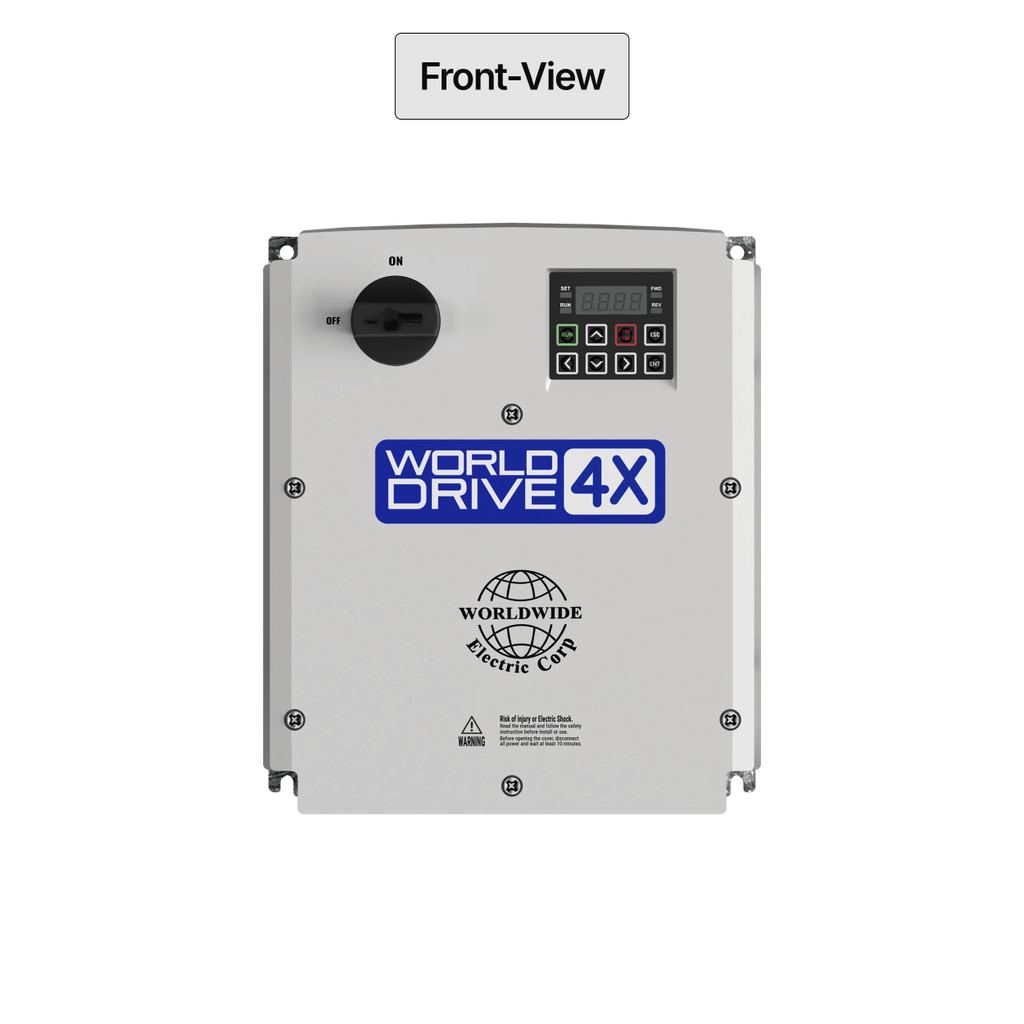

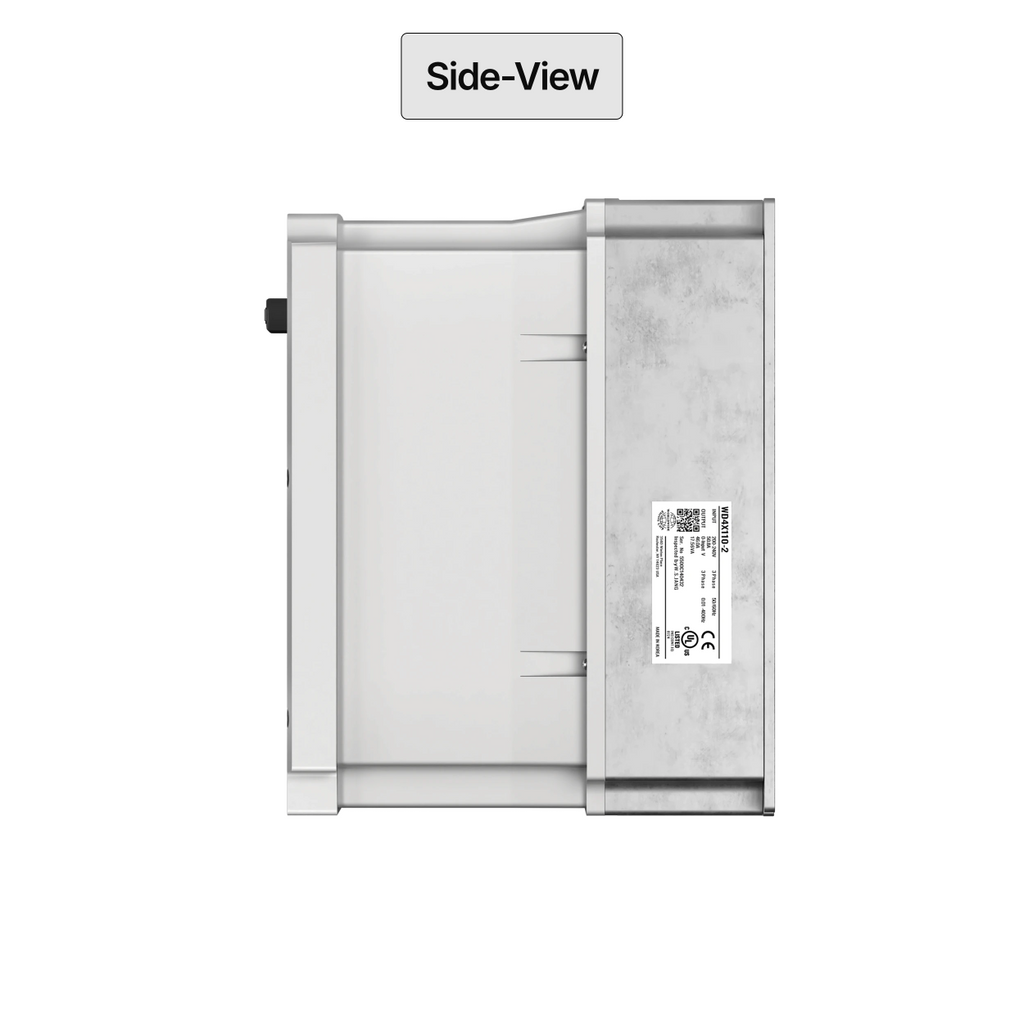

Worldwide Electric WD4X004-4 Variable Frequency Drive

The WD4X004-4 is part of the WorldDrive 4X series, a NEMA 4X rated variable frequency drive built to withstand the most demanding conditions. This IP66/NEMA 4X enclosure provides superior protection against water, dust, and corrosive environments, making it ideal for outdoor installations and harsh industrial applications.

Technical Specifications

• Input Voltage: 460V AC, Three Phase (-15%, +10%)
• Output: 460V AC, Three Phase
• Rated Power: 0.5 HP (Three Phase Output)
• Output Current: 1.3A
• Enclosure Rating: NEMA 4X / IP66 (Outdoor, Corrosion Resistant)
• Control Method: Sensorless Vector Control
• Output Frequency: 0-400Hz (Sensorless: 0-300Hz)
• Carrier Frequency: 1-15kHz
• Dimensions (H x W x D): 10.1" x 7.1" x 6.9"
• Approximate Weight: 8.2 lbs

Key Features

• 150% overload for 60 seconds
• IP66/NEMA 4X rated enclosure for extreme environments
• Sensorless vector control for precise motor operation
• Built-in Modbus-RTU communication
• Conformal coated printed circuit boards
• UL, cUL, Listed and CE certified
• Suitable for outdoor installations and corrosive environments

Applications

Designed for outdoor HVAC installations, food processing facilities, chemical plants, marine environments, and any application requiring protection from water, dust, and corrosive conditions. Ideal for contractors working in demanding industrial and commercial settings.

Certifications & Compliance

UL listed, cUL listed, CE certified. Professional installation required. Complies with NEMA 4X and IP66 standards for harsh environment protection.
